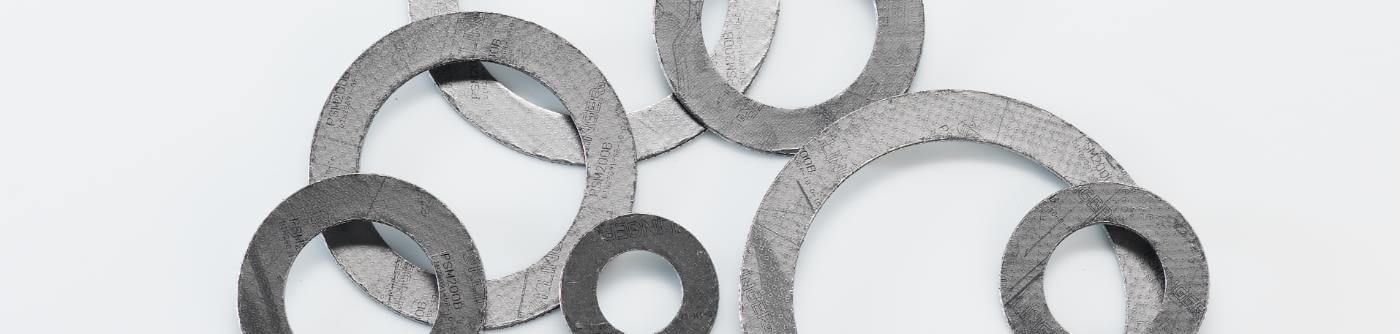

KLINGER® GRAPHITE LAMINATED GASKETS

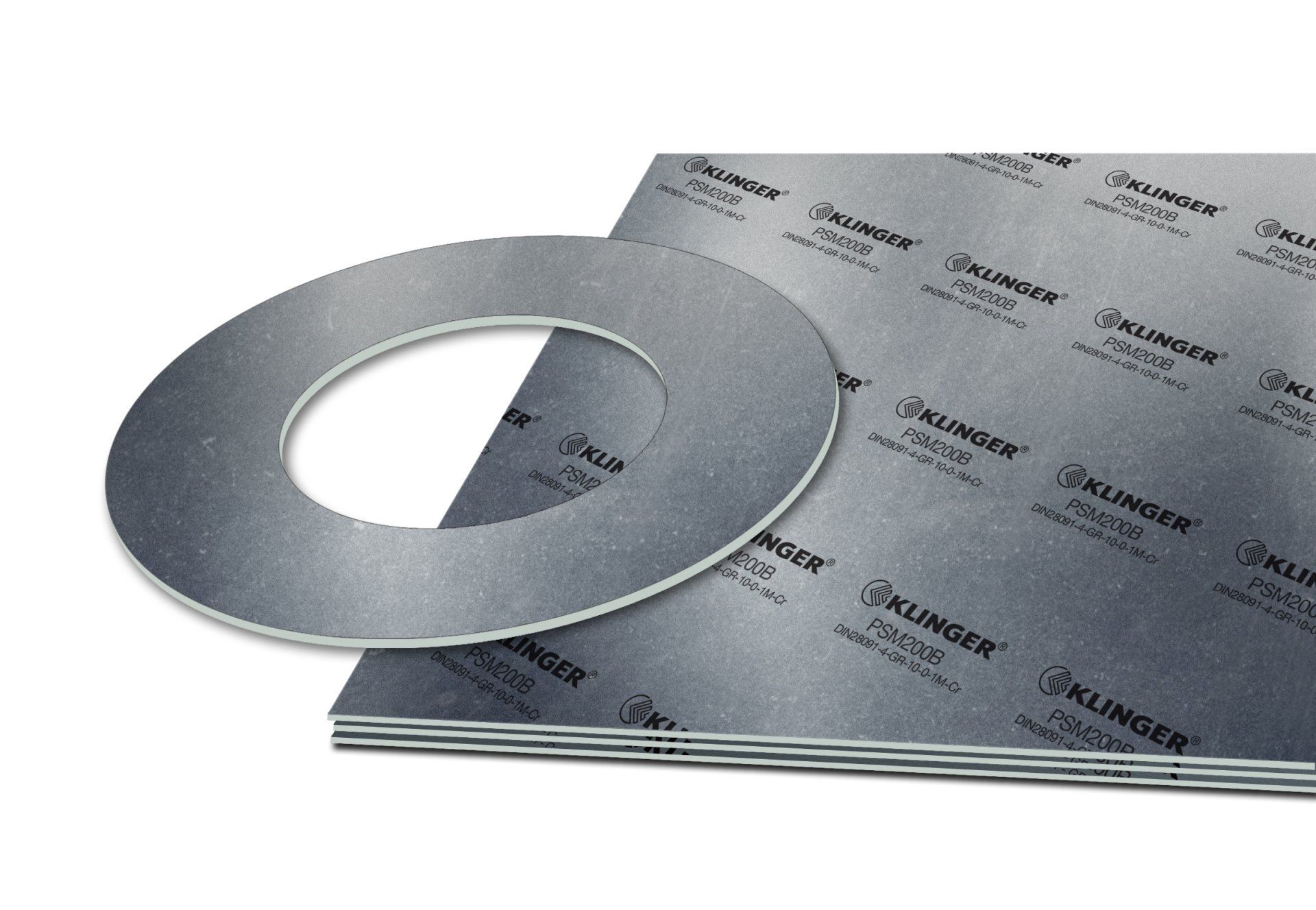

KLINGER PSM has a 0.1 mm thick perforated stainless steel insert. The insert aids material handling properties and also increases the blow-out resistance. The insert is mechanically bonded to pure exfoliated graphite and therefore does not rely on adhesive.

In order to prevent the gasket material from sticking to the flange surface (even at high temperatures), the graphite surface can be given a non-stick coating at the customer's request. The gasket material's surface is coated and not impregnated with this process.

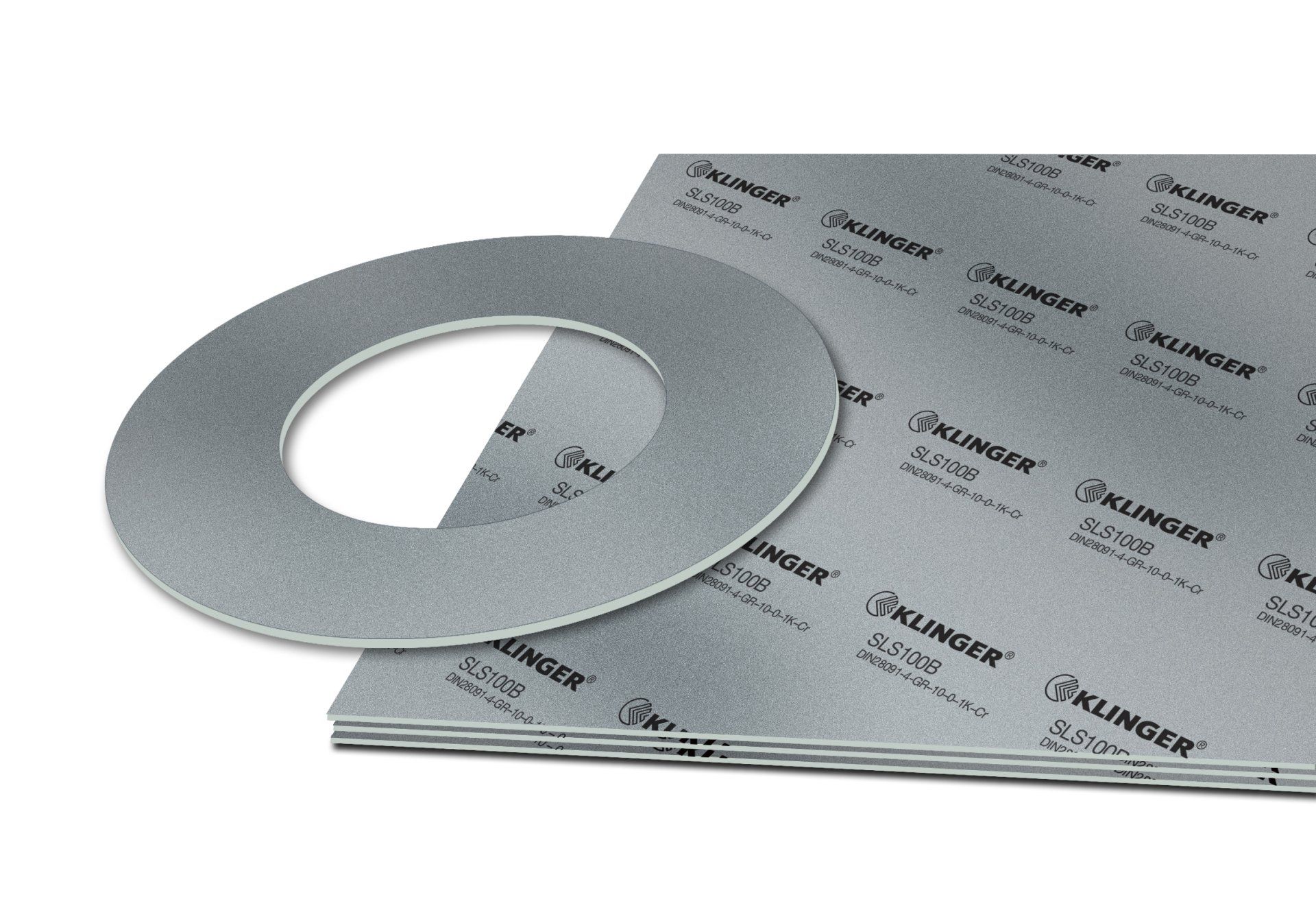

KLINGER SLS is especially suitable for weak flanges at high temperatures up to 842°F (450°C). The gasket material consists of pure exfoliated layers of graphite, which are mechanically bonded to a 0.05 mm thick, smooth, stainless steel insert. The insert aids material handling properties and also increases blow-out resistance. KLINGER SLS is suitable for universal use especially in combination with weak flanges and for sealing of liquid level gauges.

In order to prevent the gasket material from sticking to the flange surface (even at high temperatures), the graphite surface can be given a non-stick coating at the customer's request. With this process, the gasket material's surface is coated and not impregnated.

KLINGER MLX is a high-performance material suitable for heavy-duty conditions because of its high compressive strength.

Gaskets from MLX material are an excellent choice for high-pressure applications. MLX gaskets are robust and adapt to any sealing surface including irregular flanges.
